Compressors

All SHI Cryocoolers, Pulse Tubes and Cryopumps are driven by highly-efficient and reliable helium compressors.  These compressors boast industry-leading 20,000 or 30,000 hour maintenance intervals, and are available in single-phase and three-phase, low and high voltage, and water and air-cooled versions.


Specifications

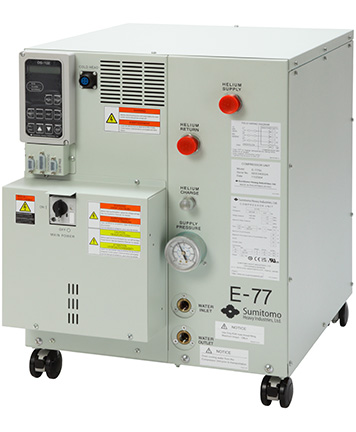

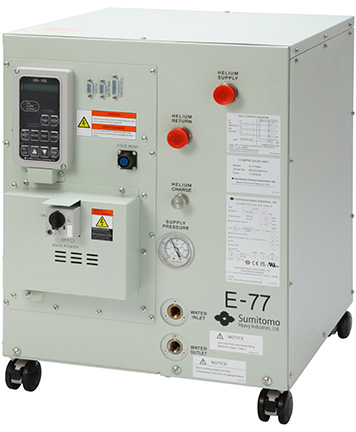

Water-Cooled Compressor Product Specifications

Compressor Model CSW-61 HC-4E CKW-21A HC-8E F-40
C D L H
Electrical Supply 3 Phase
200-230 V,
50/60 Hz
3 Phase
378-528 V,
50/60 Hz
1 Phase
200, 230/240 V,
50 Hz
200/208/230 V,
60 Hz
3 Phase
200 V, 50/60 Hz
3 Phase
220 V, 50 Hz 220/230 V, 60 Hz
3 Phase
200 V, 50/60 Hz
3 Phase
380, 400,
415 V, 50 Hz
460-480 V, 60 Hz
Power Consumption1 0.9 kW/pump (KZ-8L)
1.5 kW/pump (KZ-12L)
2.6 kW at 50 Hz
3.0 kW at 60 Hz
2.7-3.3 kW at 50 Hz
3.5-4.0 kW at 60 Hz
3.7 kW at 50 Hz
4.3 kW at 60 Hz
3.6-4.8 kW at 50 Hz
 4.6-5.6 kW at 60 Hz
Ambient Temperature 5-35 ºC (41-95 °F) 4-40 ºC (39-104 °F) 5-35 ºC (41-95 °F) 4-40 ºC (39-104 °F) 4-40 ºC (39-104 °F)
Cooling Water(Inlet) 4-10 L/min. (1.1-2.6 gal./min.)4-28 °C (40-82 °F) 2.7 L/min. (0.7 gal./min.) 4-27 °C (39-80 °F) 3.0-3.5 L/min.(0.8-0.9 gal./min.)
4-28 °C (39-82 °F)
5.7-9.5 L/min.(1.5-2.5 gal./min.)
4-21 °C (39-70 °F)
4-9 L/min. (1.0-2.4 gal./min.)
 5-25 °C (41-77 °F)
Dimensions(HxWxD) 865 x 455 x 660 mm (34.1 x 17.9 x 26.0 in.) 865 x 455 x 640 mm
(34.1 x 17.9 x 25.2 in.)
504 x 430 x 485 mm
(19.8 x 16.9 x 19.1 in.)504 x 430 x 605 mm
(19.8 x 16.9 x 23.8 in.)
with transformer
471 x 401 x 450 mm
(18.5 x 15.8 x 17.7 in.)
504 x 430 x 485 mm
(19.8 x 16.9 x 19.1 in.)
532 x 442 x 493 mm
(20.9 x 17.4 x 19.4 in.)
Weight 130 kg (287 lbs.) 75 kg (165 lbs.)
82 kg (180 lbs.) w/transformer
70 kg (155 lbs.) 75 kg (165 lbs.) 96 kg (212 lbs.)
Maintenance 30,000 Hours 30,000 Hours 20,000 Hours 30,000 Hours 30,000 Hours



Compressor Model F-50  F-50S F-70 F-100
L H SL SH LP L H L H
Electrical Supply 3 Phase
200 V, 50/60 Hz
3 Phase
380, 400,
415 V, 50 Hz
480 V, 60 Hz
3 Phase
200 V, 50/60 Hz
3 Phase
380/400/415 V, 50 Hz
460/480 V, 60 Hz
3 Phase
200 V,
50/60 Hz
3 Phase
380-415 V, 50 Hz
480 V, 60 Hz
3 Phase
 200 V, 50 Hz
 200,230 V, 60 Hz
3 Phase
380/400/415 V, 50 Hz
460/480 V, 60 Hz
Power Consumption1 6.5-7.2 kW at 50 Hz 7.5-8.3 kW at 60 Hz 6.5-7.2 kW at 50 Hz 7.5-8.3 kW at 60 Hz 6.6-8.5 kW 50 Hz
 7.5-9.8 kW 60 Hz
6.6-6.9 kW at 50 Hz
  7.5-7.8 kW at 60 Hz
6.6-8.5 kW at 50 Hz
  7.5-9.8 kW at 60 Hz
11.8-13.7 kW at 50 Hz
 14.5-16.3 kW at 60 Hz
Ambient Temperature 5-35 ºC (41-95 °F) 5-35 ºC (41-95 °F) 4-40 ºC (39-104 °F) 5-35 ºC (41-95 °F)
Cooling Water(Inlet) 7-10 L/min. (1.8-2.6 gal./min.) 4-28 °C (39-82 °F) 7-10 L/min. (1.8-2.6 gal./min.) 4-28 °C (39-82 °F) 6-9 L/min. (1.6-2.4 gal./min.) 5-25 °C (41-77 °F) 8-10 L/min. (2.1-2.6 gal./min.)
 4-28 °C (39-82 °F)
Dimensions(HxWxD) 591 x 450 x 485 mm (23.3 x 17.7 x 19.1 in.) 671 x 450 x 485 mm (26.4 x 17.7 x 19.1 in.) 532 x 443 x 493 mm (20.9 x 17.4 x 19.4 in.) 1331 x 511 x 512 mm
(52.4 x 20.1 x 20.2 in.)
Weight 120 kg (264 lbs.) 120 kg (265 lbs.) 100 kg (220 lbs.) 250 kg (551 lbs.)
Maintenance 30,000 Hours 30,000 Hours 30,000 Hours 30,000 Hours



Air-Cooled Compressor Product Specifications

Compressor Model CNA-11 Zephyr® FA-40 CSA-71A FA-70
B C L H L H

Electrical
Supply
1 Phase 100 V,
50/60 Hz
1 Phase 100, 120, 220, 230, 240 V, 50/60 Hz 1 Phase 200, 220,
230/240 V, 50 Hz 200, 220 V, 60 Hz
3 Phase 200 V,
50/60 Hz
3 Phase 380/400/415 V, 50 Hz 460/480 V,60 Hz 3 Phase
200 V, 50/60 Hz
3 Phase
200 V, 50/60 Hz
3 Phase 380/400/415 V, 50 Hz 460/480 V,60 Hz
PowerConsumption1 1.2-1.3 kW at 50 Hz
1.3-1.5 kW at 60 Hz
3.0 kW at 50 Hz
3.4 kW at 60 Hz
3.6-5.4 kW at 50 Hz
4.6-6.4 kW at 60 Hz
6.5-7.2 kW at 50 Hz 7.5-8.3 kW at 60 Hz 6.9-8.0 kW at 50 Hz 7.9-9.0 kW at 60 Hz
Ambient Temperature 4-38 ºC (39-100 °F) 4-32 ºC (39-90 °F) 4-38 ºC (39-100 °F) 5-35 ºC (41-95 °F) 4-40 ºC (39-104 °F) – Indoor ¯30-45 ºC (¯22-113 °F) – Outdoor
Cooling Air 2.7 m3/min. (95 cfm), 50 Hz
3.3 m3/min. (117 cfm), 60 Hz
14 m3/min.
(500 cfm), 50/60 Hz
14.7 m3/min. (520 cfm), 50 Hz
 17.6 m3/min. (620 cfm), 60 Hz
28 m3/min. (989 cfm), 50/60 Hz 23.5/47.3 m3/min. (830/1670 cfm), 50 Hz
 26.6/53.8 m3/min. (940/1900 cfm), 60 Hz
 Low/high fan speed
Dimensions(HxWxD) 400 x 383 x450 mm(15.7 x 15.1 x 17.7 in.) 610 x 390 x450 mm(24.0 x 15.4 x 17.7 in.) 715 x 453 x 488 mm
(28.2 x 17.8 x 19.2 in.)715 x 453 x 605 mm
(28.2 x 17.8 x 23.8 in.)
with transformer
889 x 442 x 493 mm (35 x 17.4 x 19.4 in.) 885 x 550 x 550 mm(34.8 x 21.7 x 21.7 in.) 652 x 267 x 546 mm
(25.7 x 10.5 x 21.5 in.) – Indoor1016 x 391 x 948 mm
(40 x 15.4 x 37.3 in.) – Outdoor
Weight 42 kg (93 lbs.) 75 kg (165 lbs.) 102 kg (225 lbs.)
111 kg (245 lbs.) w/transformer
110 kg (242 lbs.) 140 kg
(309 lbs.)
46 kg (101 lbs.) – Indoor
 142 kg (312 lbs.) – Outdoor
Maintenance 30,000 Hours 30,000 Hours 30,000 Hours 20,000 Hours 30,000 Hours

1 Typical power consumption

Specifications subject to change without notice.

Options
  CSW-61 HC-4E CKW-21A HC-8E F-40 F-50 F-50S F-70 F-100 CNA-11 Zephyr® FA-40 CSA-71A FA-70
4K Cryocoolers
RDK-101D    •               •
RDK-305D         •
RDK-205D       •              •
RDK-408D2
RDE-412D4         3       3
RDK-415D
RDE-418D4
10K Cryocoolers
CH-202
CH-204           1
CH-208R
CH-208L
CH-210
RDK-408S                        •
Pulse Tube Cryocoolers
RP-062B
RP-062BS
RP-082B2                          4
RP-082B2S                         4
RP-182B2S
Specialty Cryocoolers
CH-204-N           1
CH-210-N
CH-210L
RDK-400B
RDK-500B
RD-125D
CH-104           1
CH-110   2   2           2      •
CH-110LT                          •
Cryopumps
CP-8
CP-8LP
CP-250LP
CP-12
CP-16
CP-20
KZ-8L
KZ-12L
  CSW-61 HC-4E CKW-21A HC-8E F-40 F-50 F-50S F-70 F-100 CNA-11 Zephyr® FA-40 CSA-71A FA-70

1 Up to two (2) cold heads can be operated with F-70 Compressor
2 Reduced capacities when operated with Zephyr®, HC-4E1 or HC-8E4 Compressors
3 Reduced capacities when operated with F-40, F-70 or FA-40 Compressors. Please contact SHI for more details.
4 Reduced capacities when operated with FA-70.
